NEMA size coverage for mainstream OEM platforms
Product Series

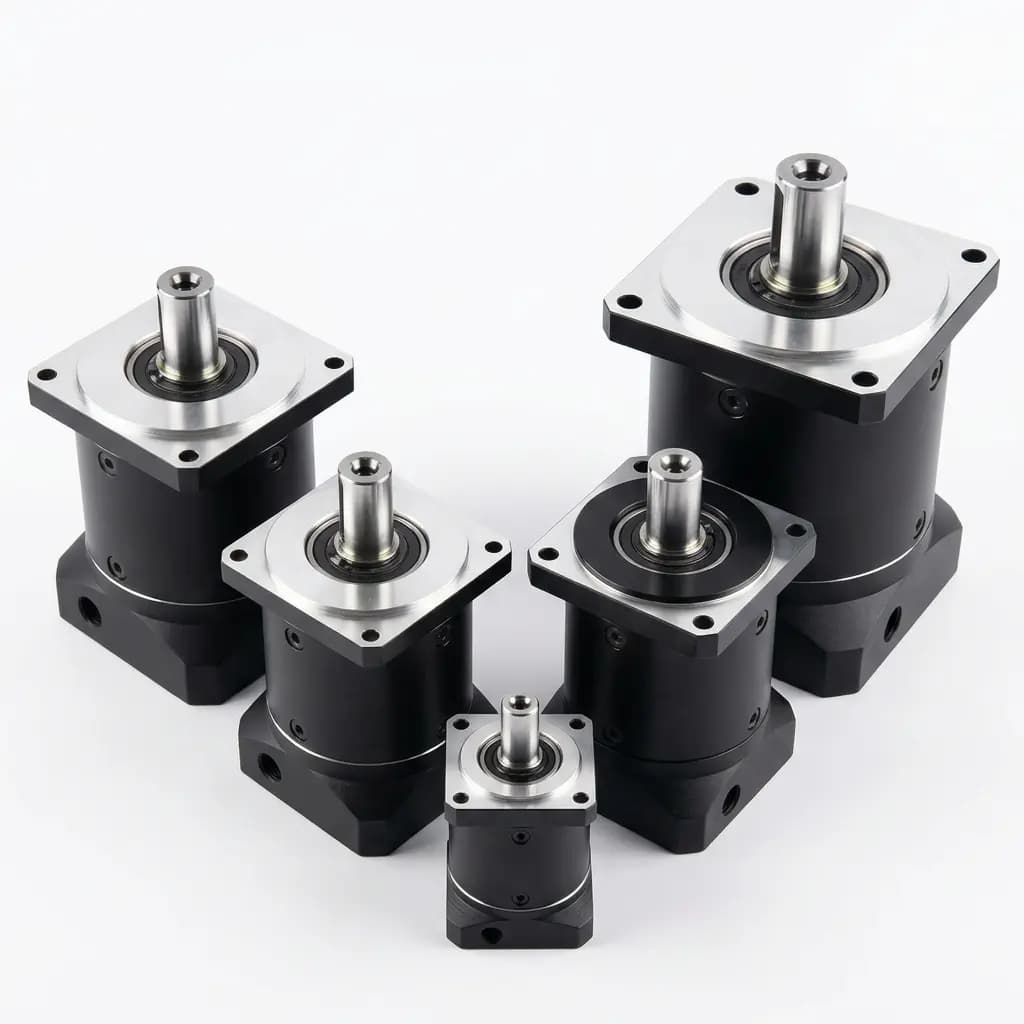

Spur Planetary Gearbox
Economical and Scalable Series
A practical choice for buyers balancing precision requirements with cost control across general automation lines.
Visual references
Image set selected by model naming semantics for quick engineering context.
Internal component layout: sun gear, planet gears, and ring gear
Low-backlash option for positioning-sensitive axes

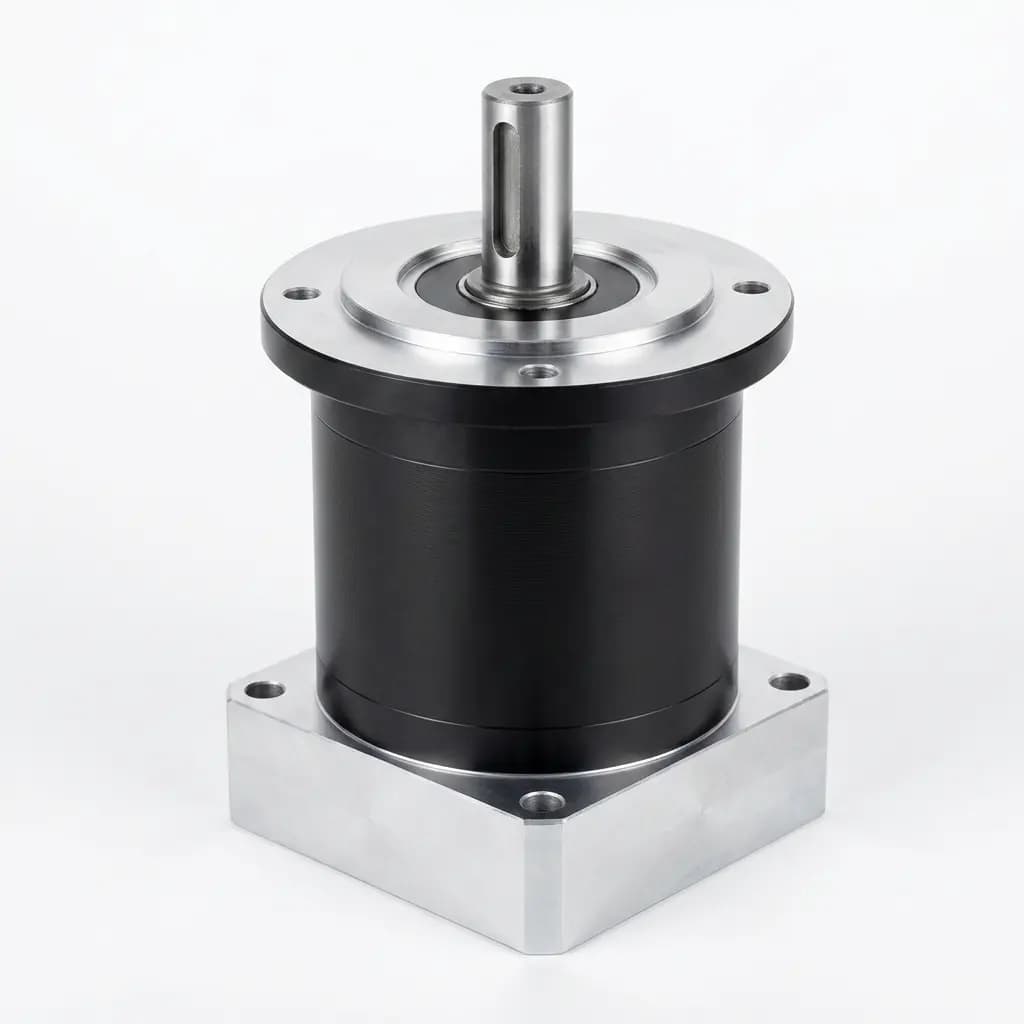

Cost-effective PLF series for budget-conscious automation

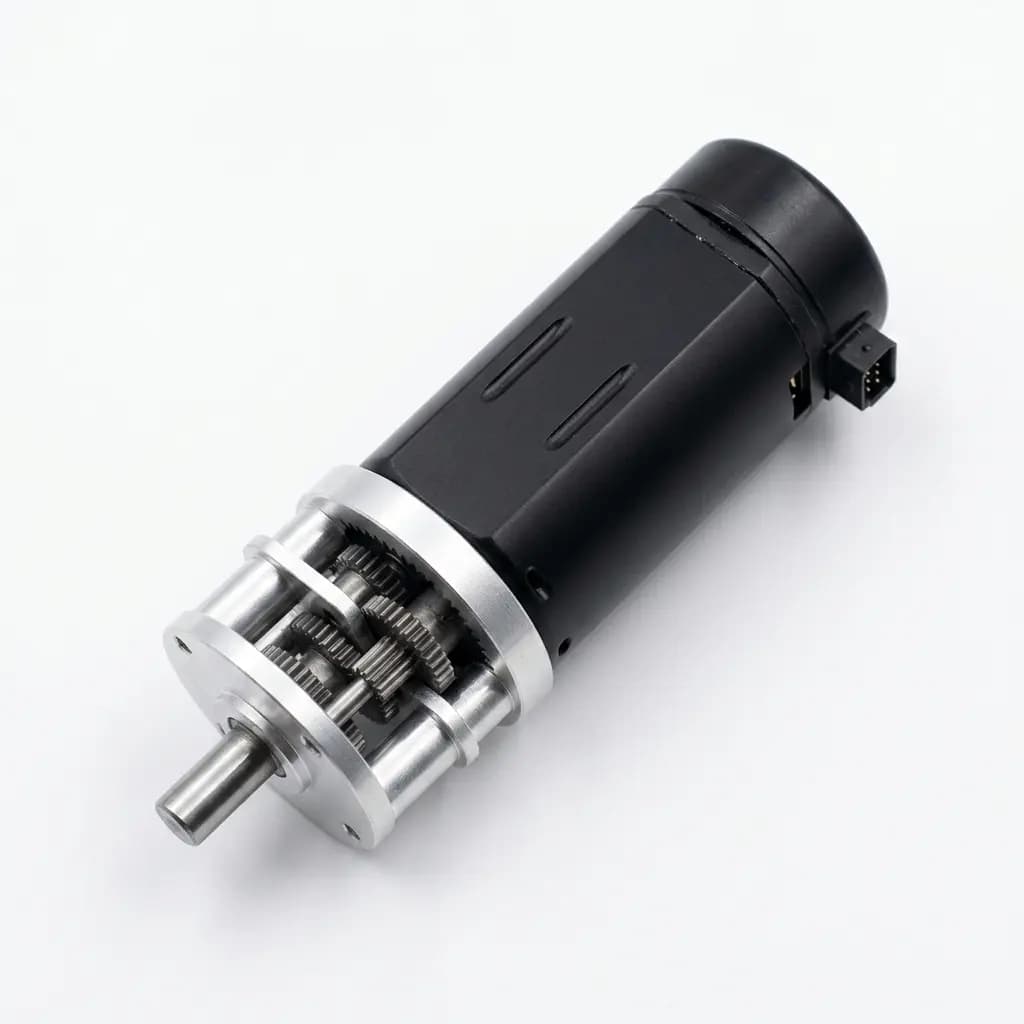

Stepper compatibility scenario for cost-sensitive builds

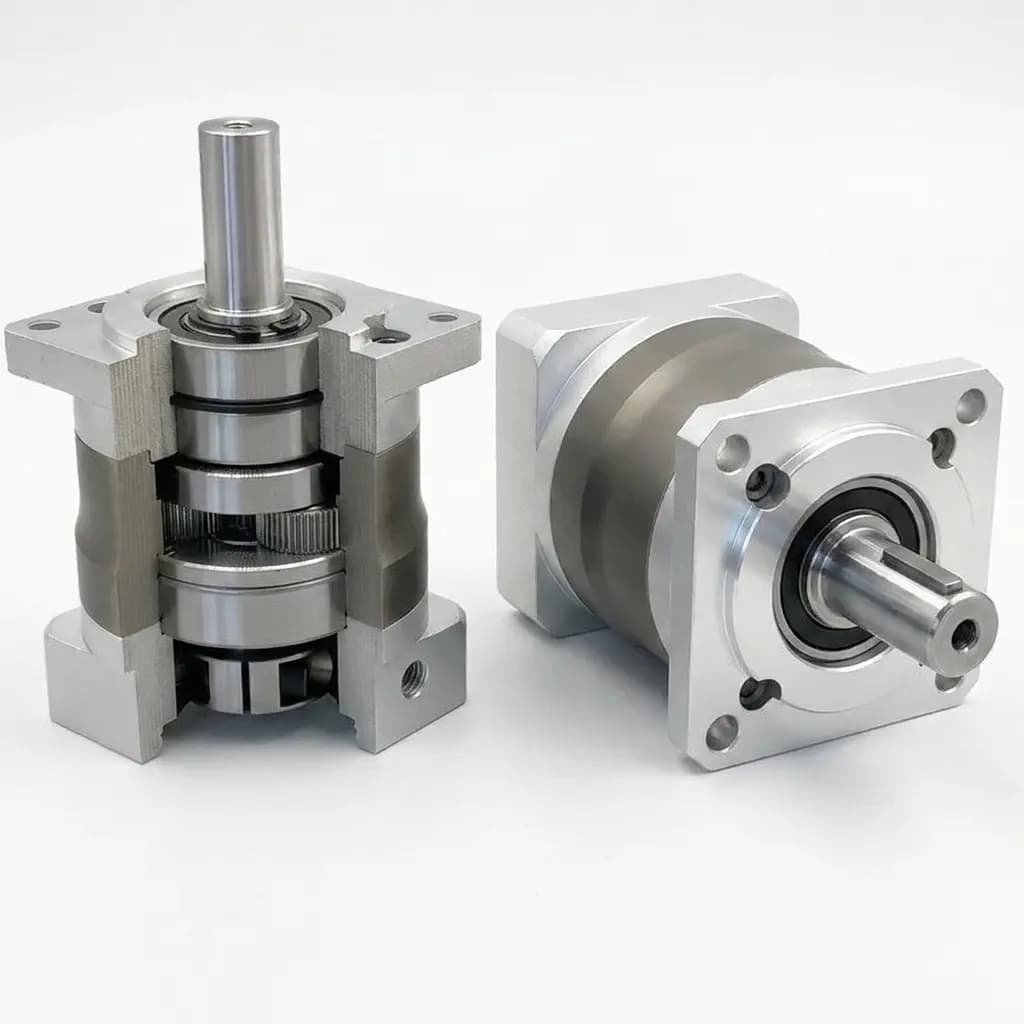

Cross-section view vs assembled unit for engineering reference
Application fit
- Assembly and handling equipment
- Conveyor and indexing subsystems
- General-purpose servo automation lines
Key specs
- Multiple frame-size options for mainstream OEM machines
- Configurable ratios for speed and torque balancing
- Low-backlash options available by application target
- Industrial-grade output interface compatibility
Compatibility context
- Stepper and servo input interface support
- Adaptation planning for legacy reducer replacement
- Assistance on flange and bolt-pattern confirmation
OEM customization notes
- Cost-sensitive projects can choose staged configuration options.
- Customization path available for quantities with repeated procurement cycles.
Selection Briefing Checklist
Use this checklist before requesting quotation so proposals are comparable and engineering-usable.
| Checklist Item | Required Information |
|---|---|
| Motion requirement fit | Ratio target, output speed, rated and peak torque window. |
| Precision requirement fit | Backlash class expectation and repeatability sensitivity. |
| Mechanical interface fit | Motor model, pilot diameter, bolt pattern, input/output shaft format. |
| Duty and environment fit | Duty cycle, ambient temperature, sealing and vibration context. |
| Commercial delivery fit | Sample quantity, pilot batch, annual demand, lead-time target. |
Expected Response Deliverables
- Series-level recommendation with key assumptions
- Compatibility notes for interface constraints
- OEM feasibility comments for non-standard requests
- Separated sample and production lead-time guidance
